Most Martin guitars made are “flat top” models. That is, they have a round sound hole in approximately the center of the flat top of the guitar, with a “pin” style bridge. Martin also made some vintage instruments like archtop models during the 1930s. These can have a round sound hole, or two “f” style sound holes (one on each side of the top of the body), and have an arched top, with a “trapeze” style bridge. Martin also made ukuleles. If a guitar only has four strings (and is not a ukulele), this is known as a Tenor guitar. Uke size instruments with ten string are Tiples. Uke size instruments with eight strings are Taropatches. Martin also made mandolins, which have eight strings. To summarize:



  • 4 Strings: a ukulele or tenor guitar.
  • 10 Strings: Tiple.
  • Uke size with 8 strings: Taropatch
  • 8 strings (not a Uke): Mandolin.
  • Archtop: an arched top to the guitar with either a round soundhole, or two “f” holes on either side of the body. Trapeze style bridge. Made only during the 1930s.
  • Flattop: a flat top to the guitar, and a single round sound hole under the strings. Pin style bridge.

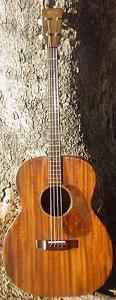

1947 Martin 0-17T Tenor guitar

Body Size

Martin flat top guitars were made in various sizes. The bigger the vintage instrument body, the better and more collectible the guitar. This is why guitar body size is so important to identify on a Martin flat top guitar. Starting in October 1930, Martin stamped the guitar body size right above the serial number inside the guitar. This makes identifying body size on October 1930 and later guitar very easy. Body sizes, pretty much from smallest to biggest, include O, OO, OOO, OM, D.

Martin Vintage Instruments – Styles

Nearly all Martin instruments come in different styles. The higher the style number, the more fancy (and collectible) the instrument. Again starting in October 1930, Martin stamped all flat top guitars with the style number, directly after the body size (and above the serial number). Style numbers can range from 15 to 45. A letter can follow the style number too, giving some additional info about the instrument. For example, a “T” after the style number indicates a Tenor guitar.

Determine the Originality

Originality of an instrument is very important. Modifications (any modifications), are a bad thing in the eyes of a collector. This will greatly influence value. Modifications can often be determined by looking at the model specs for a particular year guitar in this web page, and compare to your instrument. On flat top martins, the most common modifications are a replaced bridge, replaced tuners, or replaced frets.

{ 2 comments }

Music Matters – Here’s Why

by admin on September 13, 2012

Everything you should know about the benefits of music.

Do you like tribute bands? Are you looking for a live band to sing a range of different favourites are you most interested in a particular genre? Rock, pop, hip hop, heavy metal, country, contemporary, classical, rap, reggae, wedding music, 80s, 90s, blues, jazz? What would be your ideal choice?
Do you have the space for a small DJ or a band to really get your party going? What would fit in with your theme and what would you and your guests really want to hear? Also, what sort of budget are you looking at?
You may want to set the mood and theme around your band or try and find a band to fit an existing theme. Either way, there are a lot of different factors to consider. Fortunately, at least one part has been made easier for you – there are music management websites that will cater for all your needs in finding that perfect band, taking into account genre, religion, occasion and many other factors.

There is nothing better than listening to your favourite music. After a hard day at the office, listening to your favourite band on the way home seems to ease any tension that has built up throughout the day. It’s also hard to beat that feeling you get after purchasing the tickets for a concert and beginning the countdown to the event. Music is even being used in therapy now as a way to reduce stress by slowing your breathing and relaxing your muscles, lifting your mood. Music can stimulate your body, causing it to produce serotonin, known as the happy hormone, and it can alter your brain waves even after you have finished listening. Also, everyone knows that it can motivate you – that’s why the gyms of today are filled with people with personal stereos. Music reminds you of particular times and places – happy memories.

It’s not just adults who can benefits from listening to music. Children who listen to music from a young age often learn how to read quicker than normal and are shown to do better in school because they can concentrate for long periods of time. These benefits will help to boost your child’s self-esteem and confidence. Another good idea is to get your child into learning an instrument which can help with discipline, teamwork and will also show the benefits of practice. You never know, one day someone could be booking your son or daughter’s band for their wedding.
Tina O’Carroll is a music-lover writing on behalf of www.lmmuk.com Live Music Management

Martin Flat Top Body Sizes

by admin on January 7, 2011

Martin Flat Top Body Sizes

“Size” is the body size designation that Martin uses, as stamped inside the guitar on the neck block starting in October 1930. All measurements are in inches. “Frets” represents the frets clear of the body. “Introduced” was the year of introduction. All sizes are in inches.

Size   Frets   Width     Depth    Body Len   Tot Len   Year Introduced
----   -----   -----     -----    -------    ------    --------------
1/4    12      6 3/16    2 7/8    12                   (early version)
1/4    12      8 15/16   3 9/16   12 1/16              (later version)
1/2    12      10 1/8    3 3/8    15 1/16
7      12      13 11/16  4 3/8    17 1/2
5      12      11 1/4    3 7/8    16
4      12      11 1/2    3 3/4    16
3 1/2  12      10 11/16  3 7/8    16 7/8
3      12      11 1/4    3 13/16  17 3/8
2 1/2  12      11 5/8    3 7/8    17 7/8
2      12      12        4        18 1/4
1      12      12 3/4    4 3/16   18 7/8
O      12      13 1/2    4 3/16   19 1/8               1852
O      14      13 1/2    4 1/4    18 3/8     38 3/8    1932
OO     12      14 1/8    4 1/16   19 5/8               1877
OO     14      14 5/16   4 1/8    18 7/8     38 5/8    1934
OOO    12      15        4 1/16   20 7/16              1902
OOO    14      15        4 1/8    19 3/8     39 3/8    1934
OM     14      15        4 1/8    19 3/8               1929
D      12      15 5/8    4 3/4    20 15/16             1931
D      14      15 5/8    4 7/8    20         40 1/4    1934

UKES
----
Standard       6 3/8     2 5/16   9 7/16     21
Concert        7 3/4     2 3/4    11         23 1/2
Tenor          8 15/16   2 15/16  12 1/16    26 1/4
Baritone       10        3 3/8    14         30 11/16

    Certainly the most desirable of the Martin body size is the 000, 0M, and D sizes. Many consider the 000 (and OM, which is essentially a 000) to be the ultimate guitar size, where others feel the “D” size is the best. It’s personal preference. There are some interesting facts though about the 000 and OM sizes. (In Martin’s 1934 catalogue, any flattop guitar that had a 14-fret neck was named an “Orchestra Model”, while the older 12-fret design was named a “Standard Model”.)The OM Body Size.

Martin Orchestra Model OM

    Martin’s OM, or “Orchestra Model”, available from 1929 to 1933, has a rare combination of features. The joining of a long-scale (25.4″) neck with a small body makes it an extremely responsive and playable guitar. In many ways the OM models were the first truly modern flattop guitars. They were the first Martins to have necks with 14 frets clear of the body. The OM has a wide neck (1 3/4″ as opposed to the dreadnought’s 1 11/16″) which appeals to fingerstyle players. The string spacing is slightly greater at the bridge than on other models too, although not as wide as a classical guitars. The neck shape of old OMs is a bit unique too, although this is variable since each neck was handmade. OMs have a wide but thin backshaped V-shape which is very comfortable. Finally, the OM’s smaller body size makes the guitar easy to hold, especially in the seated position. Compared this to the D dreadnought which is larger both in body depth and width (dreadnought players seem to use straps and stand up so the guitar’s size is less of a factor).The OM model came about due to Perry Bechtel, who was a virtuoso plectrum banjo player. Perry came to see the Martin family in the early summer of 1929. He wanted Martin to make him a guitar which he could easily adapt his banjo style (remember by the late 1920s guitar was the hot instrument, replacing the banjo). He requested 15 frets clear of the body and a 27″ scale in Martin’s largest standard body size (which at that time was the 000, with 12 frets clear of the neck). The 27″ scale would retain the fret spacing of the plectrum banjo, and 15 frets clear of the body would closely resemble the length of a banjo neck.

    Martin began with a 000-size guitar, which had 12 frets clear of the body. They rejected the 27″ scale idea, as this would have been impractical since the high string tension on a guitar would have made the instrument hard to play. Instead they used a 25.4″ scale length. To accommodate Bechtel’s request for 15 frets clear of the body, they squared the body’s shoulders to add 1 5/16″ to the clear part of the fingerboard. This allowed 14 frets clear of the body. Since they felt aesthetically the bridge should remain halfway between the center of the soundhole and the endblock, there really was no way to make the guitar have 15 frets clear. The bottom bout was reshaped slightly to match the new shape of the upper bout (note when the 000 went to 14 frets in 1934 it retained this initial OM body shape).

    To make the OM more suitable for banjo players, the neck was made narrower and less V-shaped than previous Martins. The fingerboard was narrowed from the then-standard 1 7/8″ to 1 3/4″ at the nut. In addition to make the OM more banjo-like and to give it a distinctive look, banjo style tuning pegs were used. To do these, the headstock had to be made solid, instead of slotted. Previously Martin headstocks had all been slotted with tuners attached to the side mounted on a single plate for three tuners. No single-unit guitar tuners were available, so banjo pegs were a natural.

    In late 1929, Martin built a prototype batch of six OM guitars. The very first of these had pyramid bridges and no pickguard. Martin soon realized that with the vigorous strumming required in a band setting, a pickguard would be required. Hence all OMs after the prototype batch had a small teardrop-shaped pickguard. The new OMs were not highly sucessful. They sold, but not as well as Martin had hoped. In 1933 the OM designation was dropped and was now called the “000″ model. But infact the 1933 “000″ models were the same as the 1933 “OM” models, retaining the OM body style and 14 fret neck. Then in 1934 the standard 000 models were modified to the shorter 24.9″ scale (for unknown reasons, as the 12 fret 000 body had a 25.6″ scale length its inception in 1902 to its demise in 1931). Yet the OM’s longer scale was a major factor in the OM’s tone. The strings on an OM must be tuned to a higher tension to get concert pitch. This extra tension translates into more drive on the top, hence providing more volume and tone. The OM’s scalloped braces and a small maple bridgeplate give the OM a great sound. Although these features were common to other Martin models of the time, the OM’s top brace under the fingerboard was missing. This design is unique to OMs making the top very lightly braced. This does lead to some problems with cracks in the upper bout along the side of the fingerboard, but it also contributes to the great sound of the OM models.

    From http://home.provide.net/~cfh/martin.html

{ 0 comments }

Style 40 flat top – Martin Guitar, Vintage

Collectibility Rating: B (would be higher but most models were made in Hawaiian style).

    • German silver tuners with pearl buttons.
    • Ivory bound fingerboard and peghead.
    • Ivory bridge

    • Ivoroid bound top and back.
    • Snowflake inlays beginning at 5th fret.
    • Unbound fingerboard and peghead.

    • Style 40 discontinued.

    • Style 40 reintroduced.
    • Ebony bridge.
    • Most often seen as the Martin 00-40H (hawaiian) with 12 frets clear of the body and a sloted peghead. The 00-40H maintained this configuration until 1941 when it was discontinued.

    • Style 40 discontinued. Reintroduced in 1985 with slightly different specs.
  • Rosewood back and sides, abalone (pearl) inlay around top edge and soundhole (but not on top around the fingerboard like a style 41,42,45 would have), inlaid bridge pins. Fancy backstripe of horizontal lines between two rows of diagonal lines (like style 45). Most style 40 models made were hawaiian style with flat fingerboard radius, flat flush frets, high string action, and no bridge saddle compensation. Most popular was the OO-40H (though they did made 2-40, 0-40, 000-40 and 000-40H models prior to WW2). Sometimes these are converted to regular “spanish” style guitar (fingerboard radiused, refretted, neck reset, bridge saddle angled). Made from the 1860s to 1917, then 1928 to 1941, then 1985 to present. 1860s Style 40 Introduction specs:

    1909 Style 40 specs:

    1917 Style 40 specs:

    1928 Style 40 reintroduction specs:

    1941 Style 40 specs:
